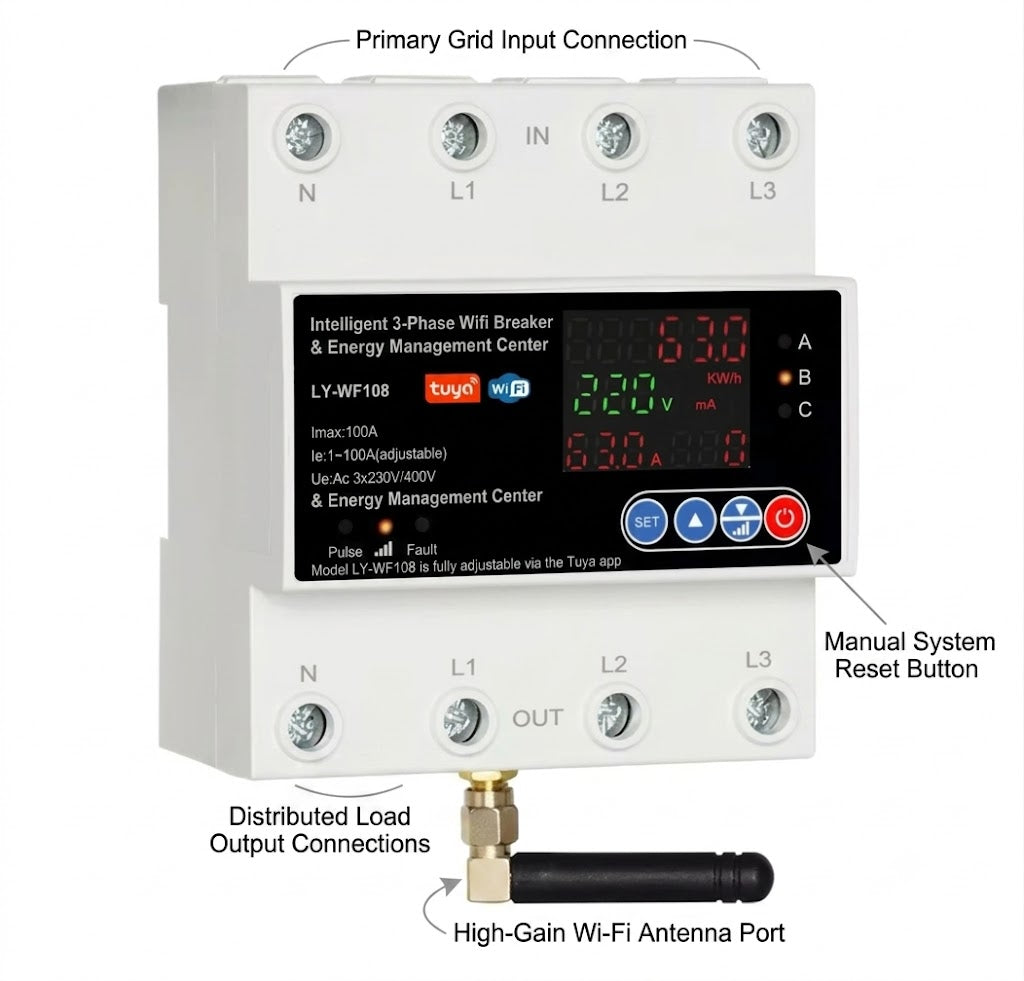

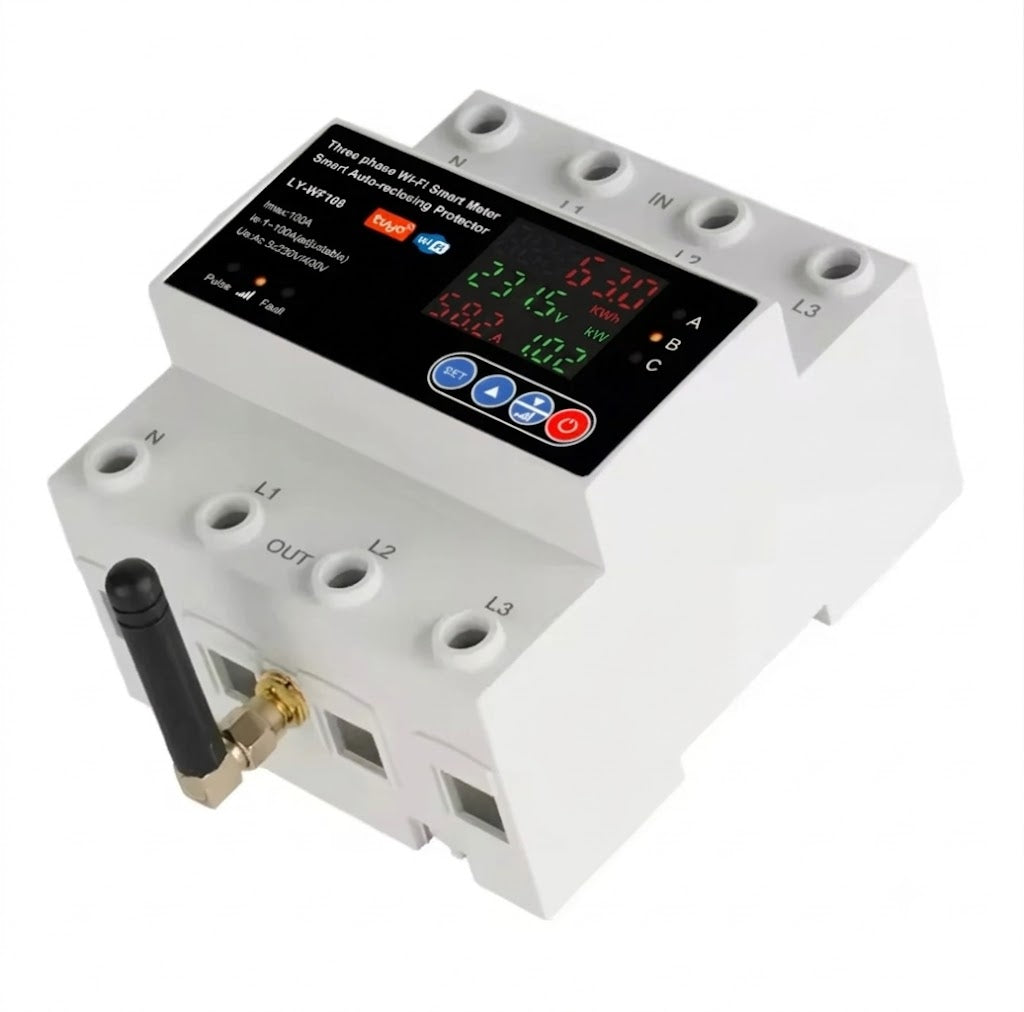

Tuya 4P 100A 3-Phase WiFi Smart Life Energy Meter & Voltage Protector

Take total control of your electrical safety and energy management with the 4P 100A 3-Phase Smart WiFi Circuit Breaker & Reclosing Protector. Designed for residential, commercial, and industrial AC 3x230V/400V applications, this all-in-one IoT device combines real-time energy metering, programmable timing, and intelligent multi-protection to safeguard your electrical equipment automatically.

Here is the cleaned-up, fully corrected version with all unnecessary LaTeX code removed and formatted for standard e-commerce listings:

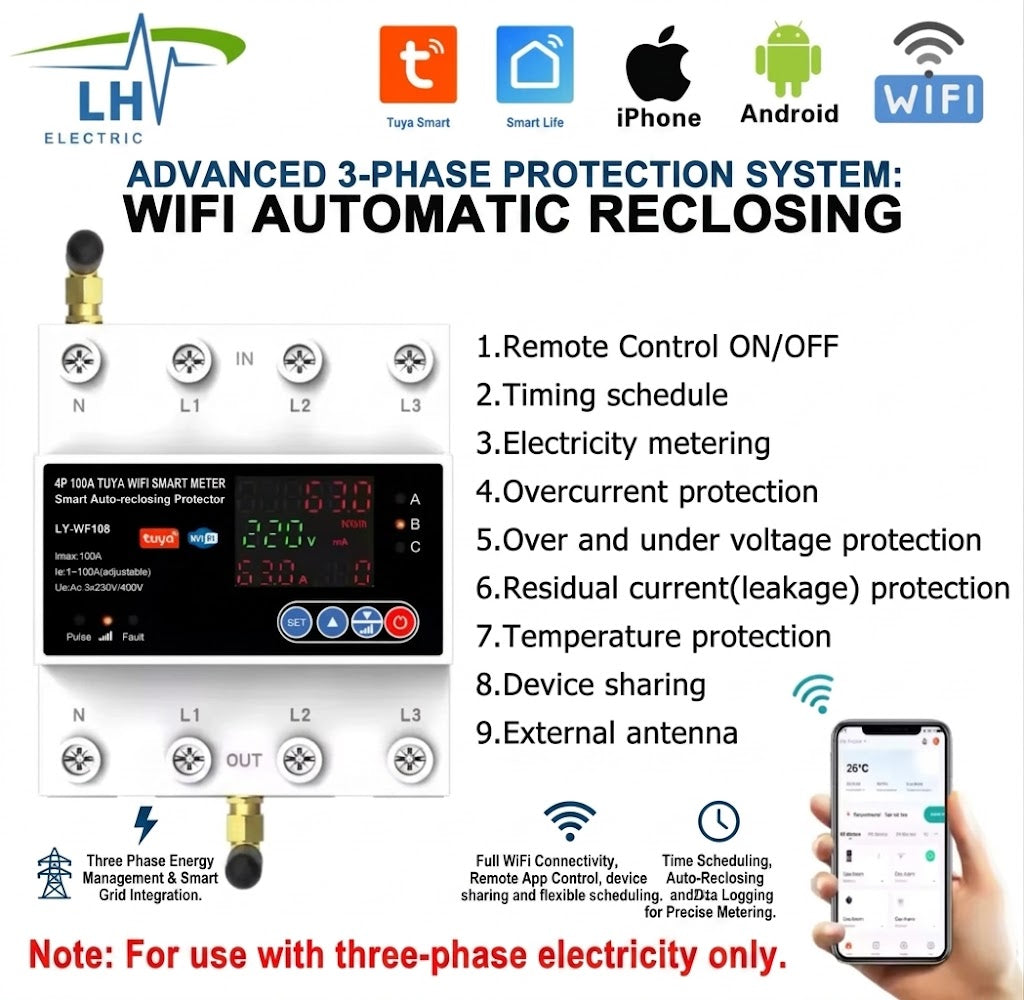

Key Features & Highlights

• 4-in-1 Smart Protection System: Fully adjustable protection against over-voltage, under-voltage, overcurrent, residual current (leakage), and high temperatures directly from your smartphone or device screen.

• Real-Time Energy Metering: Track live electrical parameters including Voltage (V), Current (A), Leakage (mA), Active Power (kW), Total Consumption (kWh), and Temperature (°C) via the Tuya Smart or Smart Life app.

• Auto-Reclosing Safety: Automatically restores power after grid fault conditions return to normal. (Safety Note: If tripped 3 consecutive times due to leakage, auto-reclosing locks out until manually cleared).

• Flexible 4-Way Control:

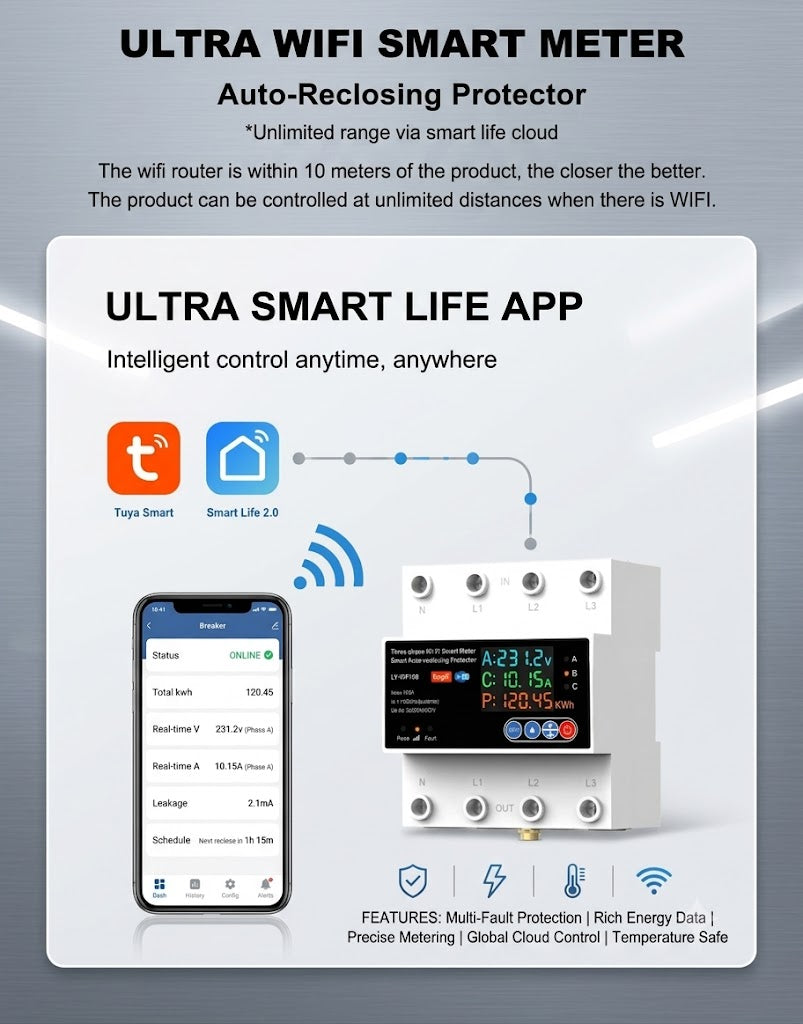

  • App Control: Manage settings and toggle power from anywhere worldwide using Tuya Smart or Smart Life.

  • Voice Control: Hands-free integration with Amazon Alexa, Google Assistant, and Yandex Alice.

  • Timing Schedules: Program custom timers and automation schedules to optimize energy usage and lower power bills.

  • Manual Control: Adjust parameters locally via on-device physical keys without requiring an active Wi-Fi connection.

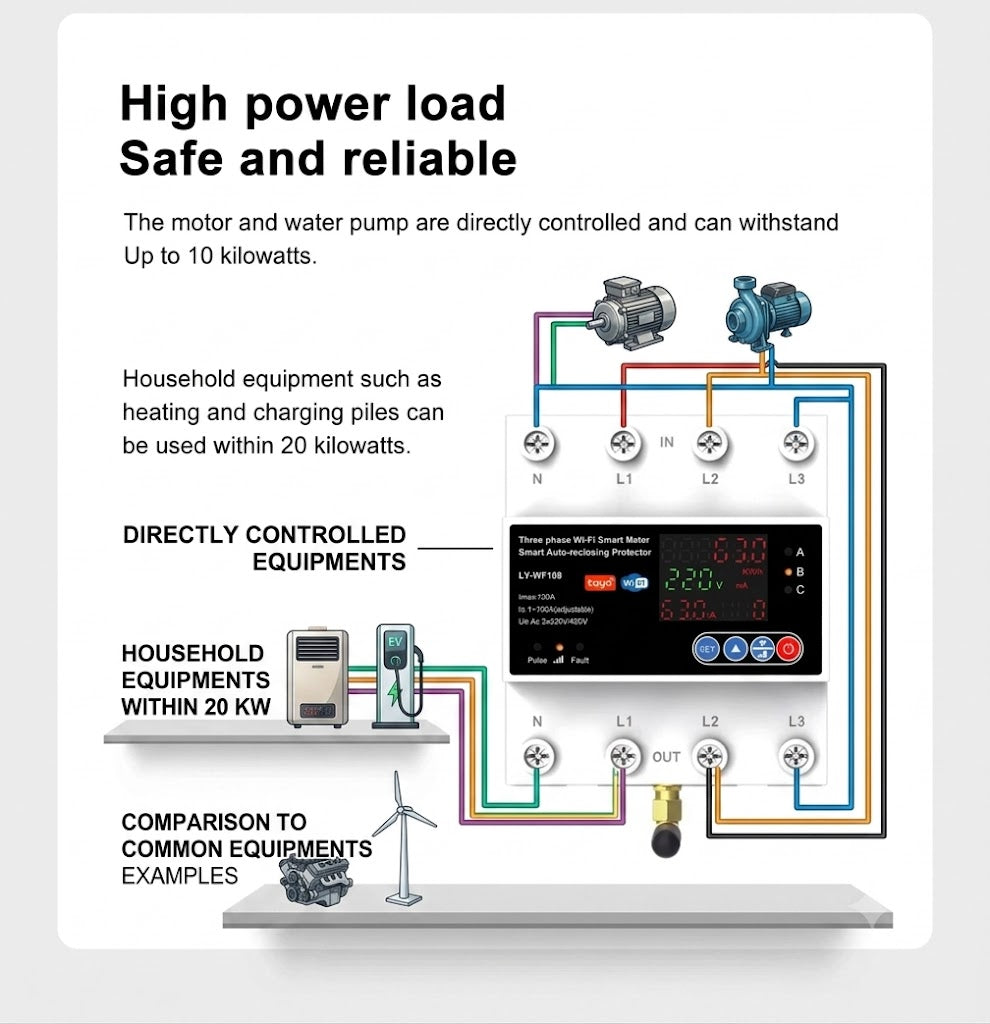

• High-Power Capacity: Built to handle high loads reliably—rated up to 100A (resistive loads ≤ 13kW, inductive loads ≤ 6kW).

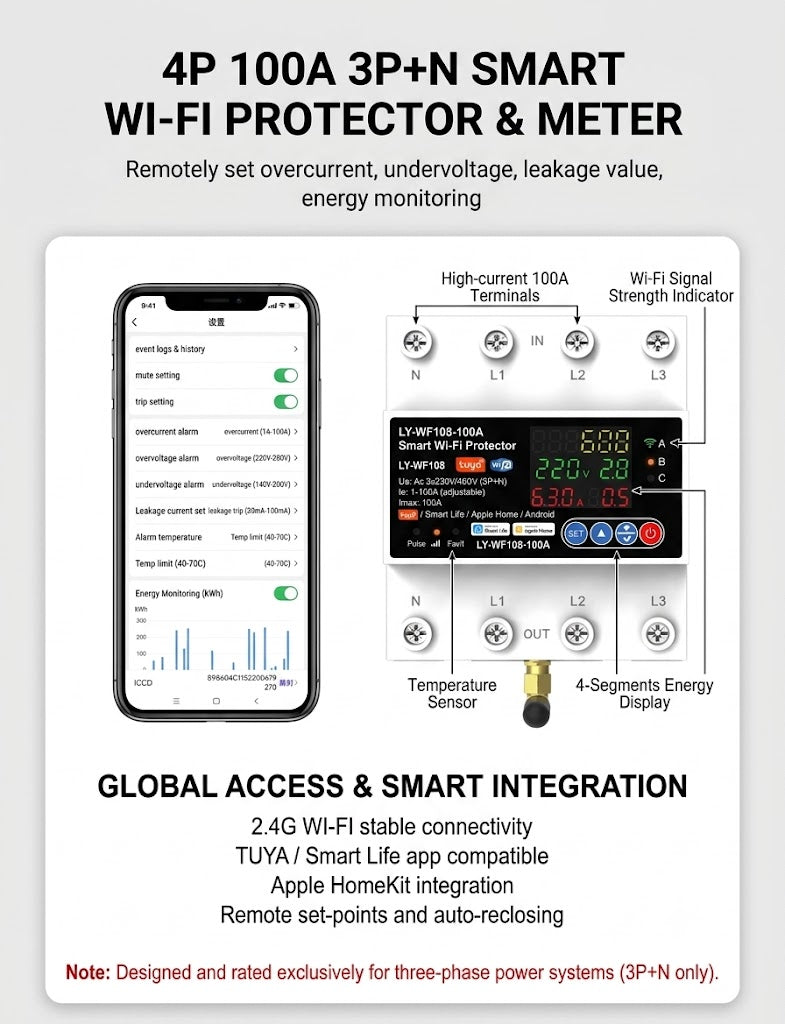

Protection Parameter Specifications

• Overcurrent Protection: 1A – 100A (Adjustable, Default: 63A)

• Over-Voltage Protection: 250V – 400V (Adjustable, Default: 275V)

• Under-Voltage Protection: 150V – 190V (Adjustable, Default: 170V)

• Leakage (Residual Current) Protection: 10mA – 100mA (Adjustable, Default: 50mA)

• Alarm Temperature: 50°C – 90°C (Adjustable, Default: 60°C)

• Tripping Temperature: 60°C – 100°C (Adjustable, Default: 70°C)

• Recovery On-Delay Time: 5s – 90s (Adjustable via physical keys, Default: 30s)

Technical Specifications

What’s in the Box?

• 1× 4P 100A 3-Phase Smart WiFi Energy Meter & Protector Relay

• 1× External Wi-Fi Antenna

• 1× User Manual
