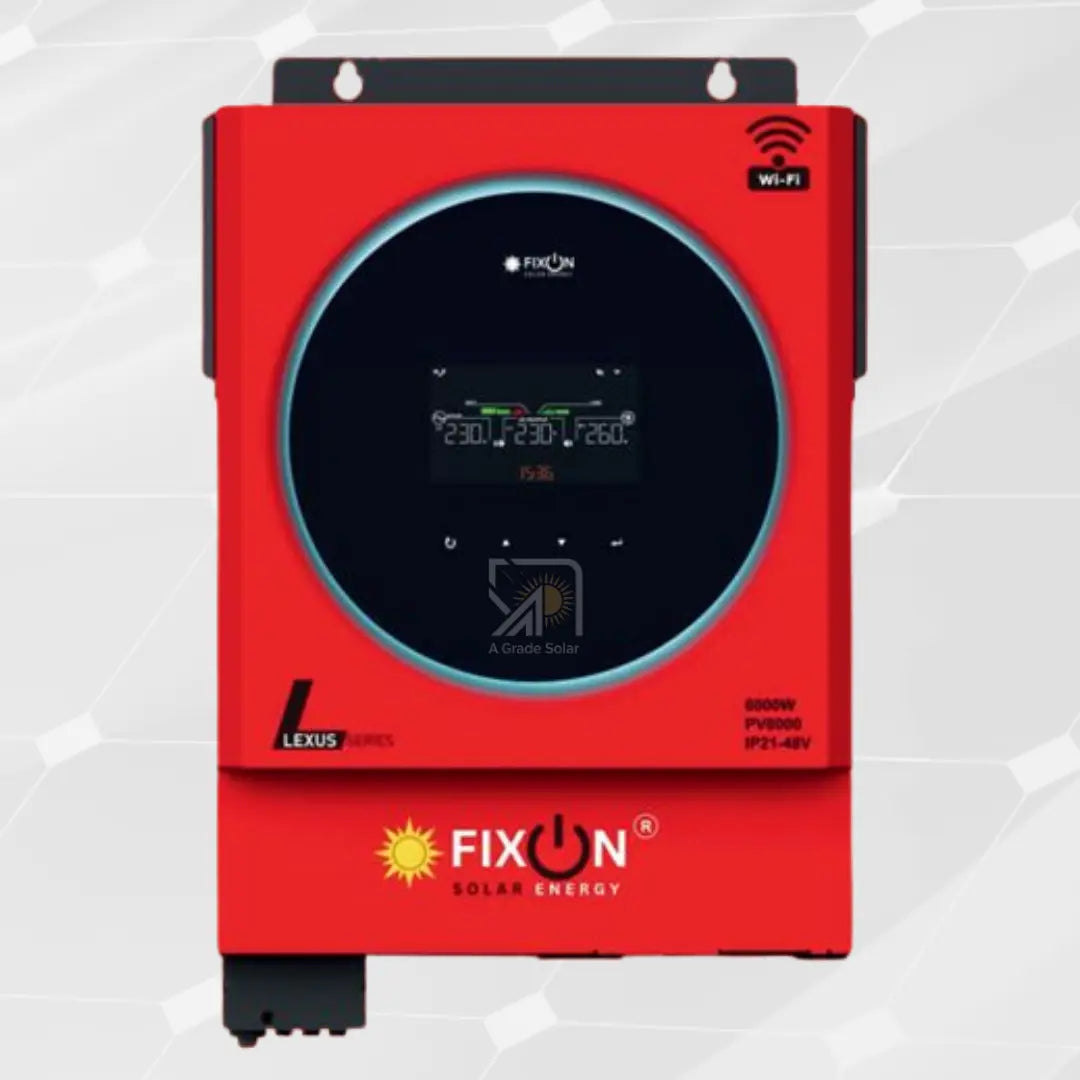

FIXON Lexus Series 4KW MPPT Hybrid Solar Inverter (4000W-24V)
Power your home or office with the FIXON Lexus Series 4KW MPPT Hybrid Solar Inverter, engineered for reliable performance, high efficiency, and intelligent energy management. Featuring a pure sine wave output, built-in MPPT solar charge controller, and multiple communication options, this inverter delivers stable and uninterrupted power while maximizing solar energy utilization.
Key Highlights
-
4000W Pure Sine Wave Output: Provides clean, stable power essential for sensitive electronics, modern appliances, and heavy household loads without risk of damage.
-
High-Efficiency MPPT Solar Charger: Built-in 120A MPPT controller with a wide operating voltage range (60 to 450 VDC) and up to 500 VDC open-circuit input, allowing flexible solar panel array configurations.
-
Instantaneous Surge Protection: Features an 8000VA surge capacity to handle motor starting currents for fridges, water pumps, and power tools.
-
24V Battery System: Optimized for standard 24 VDC battery banks with automated floating charge management (27 VDC) and overcharge safety protection (33 VDC).
-
Fast UPS-Grade Transfer: Seamless switching between solar, battery, and grid power—10 ms for computers to prevent shutdowns and 20 ms for standard home appliances.
-
Smart Connectivity: Multiple communication ports (USB, RS232, RS485, Wi-Fi, Dry-Contact) enable convenient mobile monitoring and remote management.
Detailed Technical Specifications
| Category |
Parameter |
Specification |
| Power Output |
Rated Power |
4000 VA / 4000 W |
|
Peak Surge Capacity |
8000 VA |
|
AC Voltage Output |
230 VAC ± 5% (Pure Sine Wave) |
|
Peak Efficiency |
90% to 93% |
|
Transfer Time |
10 ms (PC) / 20 ms (Appliances) |
| Grid / AC Input |
Nominal Input Voltage |
230 VAC |
|
Selectable Range |
170–280 VAC (PC) | 90–280 VAC (Appliances) |
|
Frequency Range |
50 Hz / 60 Hz (Auto-sensing) |
| Solar & Charger |
Max PV Array Voltage (Vac) |
500 VDC |
|
MPPT Voltage Range |
60–450 VDC |
|
Max Solar Charge Current |
120 A |
|
Max AC Charge Current |
100 A |
| Battery System |
Nominal Battery Voltage |
24 VDC |
|
Floating Charge Voltage |
27 VDC |
|
Overcharge Protection |
33 VDC |
| Physical & Build |
Dimensions (D X W X H) |
119 × 313.6 × 457.5 mm |
|
Net Weight |
10 kg |
|
Interfaces |
USB, RS232, RS485, Wi-Fi, Dry-Contact |
| Environmental |
Operating Temp. Range |
-10°C to 50°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
(Note: The 56,000W max PV power in raw manufacturer specs is a typo common on factory datasheets for this chassis size—in practice, 4kW/24V MPPT inverters support up to 5,000W–5,600W of PV array input.)
