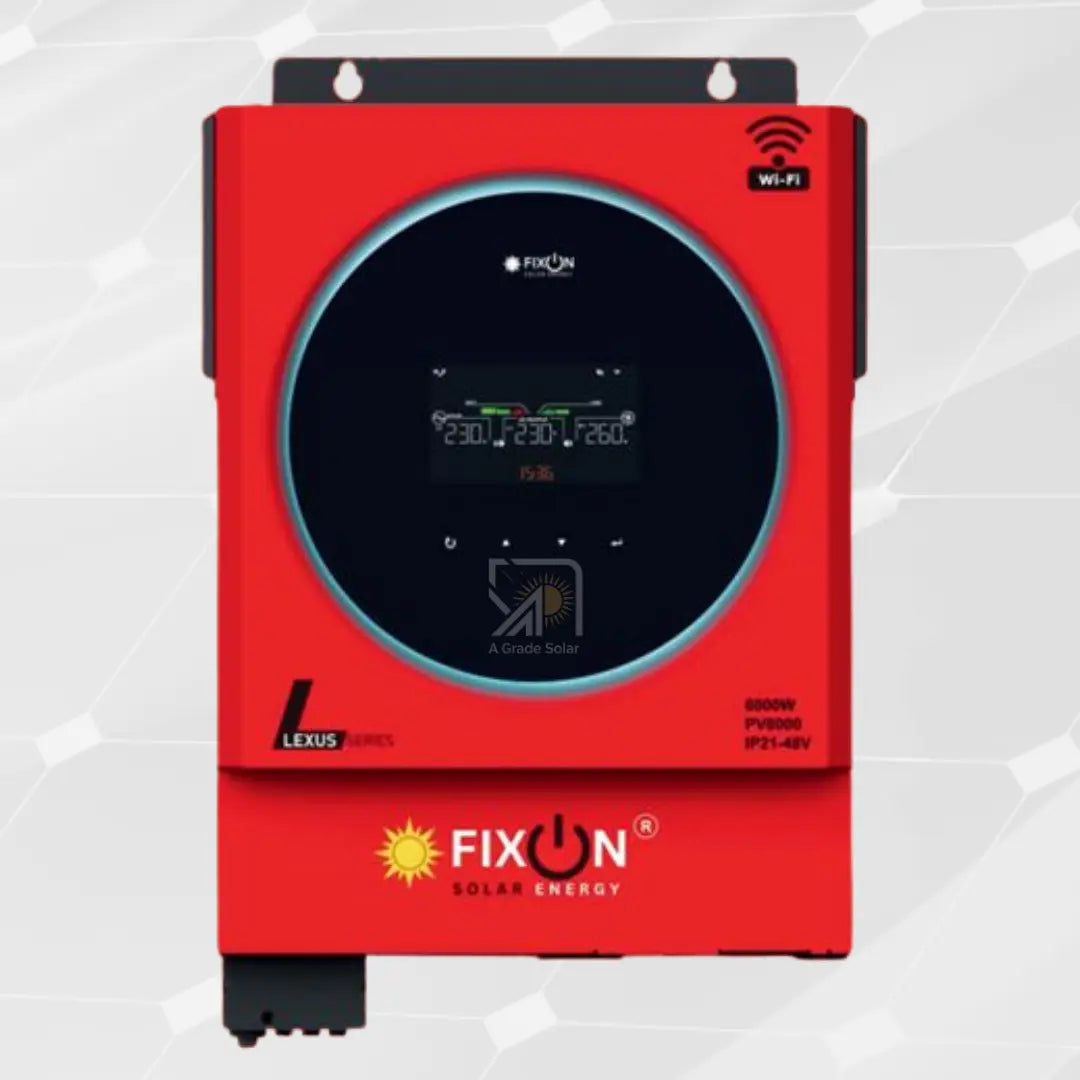

FIXON Lexus Series 6000W / 48V MPPT Hybrid Solar Inverter
Power your whole home or commercial setup with high-efficiency energy management using the FIXON Lexus Series 6000W Solar Inverter. Built with a true unity power factor (6000 VA / 6000 W) and advanced MPPT technology, this high-capacity unit delivers high performance, seamless backup, and maximum solar power harvest.
Key Highlights
-
6000W Pure Sine Wave Output: Provides clean, reliable power designed to run heavy household loads, sensitive office electronics, and large appliances without strain.
-
High-Capacity MPPT Solar Charger: Features a powerful 120A MPPT controller with a broad operating range (60 to 450 VDC) and up to 500 VDC open-circuit input for flexible panel string configurations.
-
Massive Surge Capacity: Delivers up to 12,000VA surge power to effortlessly handle initial motor startup spikes from air conditioners, water pumps, and power tools.
-
48V Battery Architecture: Designed for high-efficiency 48 VDC battery systems, reducing line loss with automated floating charge management (54 VDC) and overcharge protection (63 VDC).
-
Uninterruptible UPS Switching: Blazing-fast transfer times—10 ms for sensitive IT equipment and 20 ms for standard appliances—ensuring your devices never restart during power cuts.
-
Smart Monitoring & Control: Equipped with comprehensive communication interfaces (USB, RS232, RS485, Wi-Fi, Dry-Contact) for seamless setup and remote monitoring.
Detailed Technical Specifications
| Category |
Parameter |
Specification |
| Power Output |
Rated Power |
6000 VA / 6000 W |
|
Peak Surge Capacity |
12,000 VA |
|
AC Voltage Output |
230 VAC ± 10% (Pure Sine Wave) |
|
Peak Efficiency |
90% to 93% |
|
Transfer Time |
10 ms (PC) / 20 ms (Appliances) |
| Grid / AC Input |
Nominal Input Voltage |
230 VAC |
|
Selectable Range |
170–280 VAC (PC) | 90–280 VAC (Appliances) |
|
Frequency Range |
50 Hz / 60 Hz (Auto-sensing) |
| Solar & Charger |
Max PV Array Voltage (Vac) |
500 VDC |
|
MPPT Voltage Range |
60–450 VDC |
|
Max Solar Charge Current |
120 A |
|
Max AC Charge Current |
100 A |
| Battery System |
Nominal Battery Voltage |
48 VDC |
|
Floating Charge Voltage |
54 VDC |
|
Overcharge Protection |
63 VDC |
| Physical & Build |
Dimensions (D X W X H) |
119 × 313.6 × 457.5 mm |
|
Net Weight |
12 kg |
|
Interfaces |
USB, RS232, RS485, Wi-Fi, Dry-Contact |
| Environmental |
Operating Temp. Range |
-10°C to 50°C |
|
Storage Temp. Range |
-15°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
(Note: The 80,000W max PV power listed in raw factory specs is a typographical error common on supplier sheets for this chassis—in practice, 6kW/48V MPPT hybrid inverters typically support up to 6,000W–8,000W of PV array input.)
