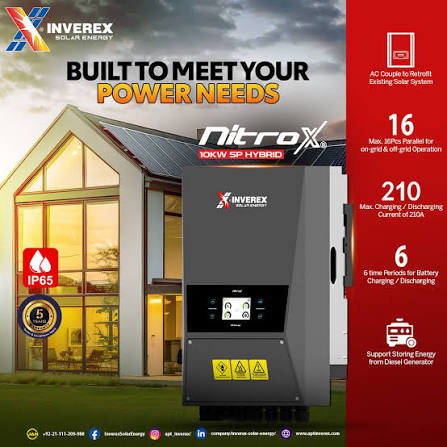

NITROX HYBRID 10KW SP-5G Solar Inverter
Upgrade your home or business solar infrastructure with the Inverex Nitrox 10KW SP-5G Single-Phase Hybrid Solar Inverter. Designed to seamlessly blend solar power, battery storage, and utility grid energy, this 48V inverter provides uninterrupted electricity, rapid battery charging, and huge energy savings.
Key Highlights & Performance Features
-
Massive 16,000W Solar PV Input: Oversize your solar panel array up to 16 kW DC input to ensure maximum energy production even during low-light, cloudy conditions.
-
Advanced Dual MPPT Technology (>99% Efficiency): Features two independent MPPT trackers with a wide operating voltage range (150V–425V DC) for maximum power harvesting across multiple roof orientations.
-
Rapid 210A Battery Charging & Discharging: Delivers fast battery turnaround times. Works seamlessly with both Lithium-ion and Lead-Acid 48V batteries with self-adapting Smart BMS integration.
-
Heavy Surge Capacity & 10000W Rated AC Output: Easily handles inductive high-load home appliances like heavy air conditioners, water pumps, and commercial machinery with up to 11,000VA max output and 2x peak surge capability.
-
IP65 Weatherproof & Rugged Design: Engineered with a heavy-duty IP65 enclosure for outdoor or harsh-environment installations.
-
Scalable Parallel Performance: Parallel up to 16 units to scale power capacity as your business or household grows.
-
Smart Remote Monitoring: Control and monitor energy consumption live using integrated RS485, CAN, RS232 ports along with optional Wi-Fi, GPRS, Bluetooth, or 4G monitoring modules.
-
Comprehensive Safety & Surge Protection: Equipped with Type II AC and DC surge protection devices (SPD), ground fault detection, and thermal derating for total peace of mind.

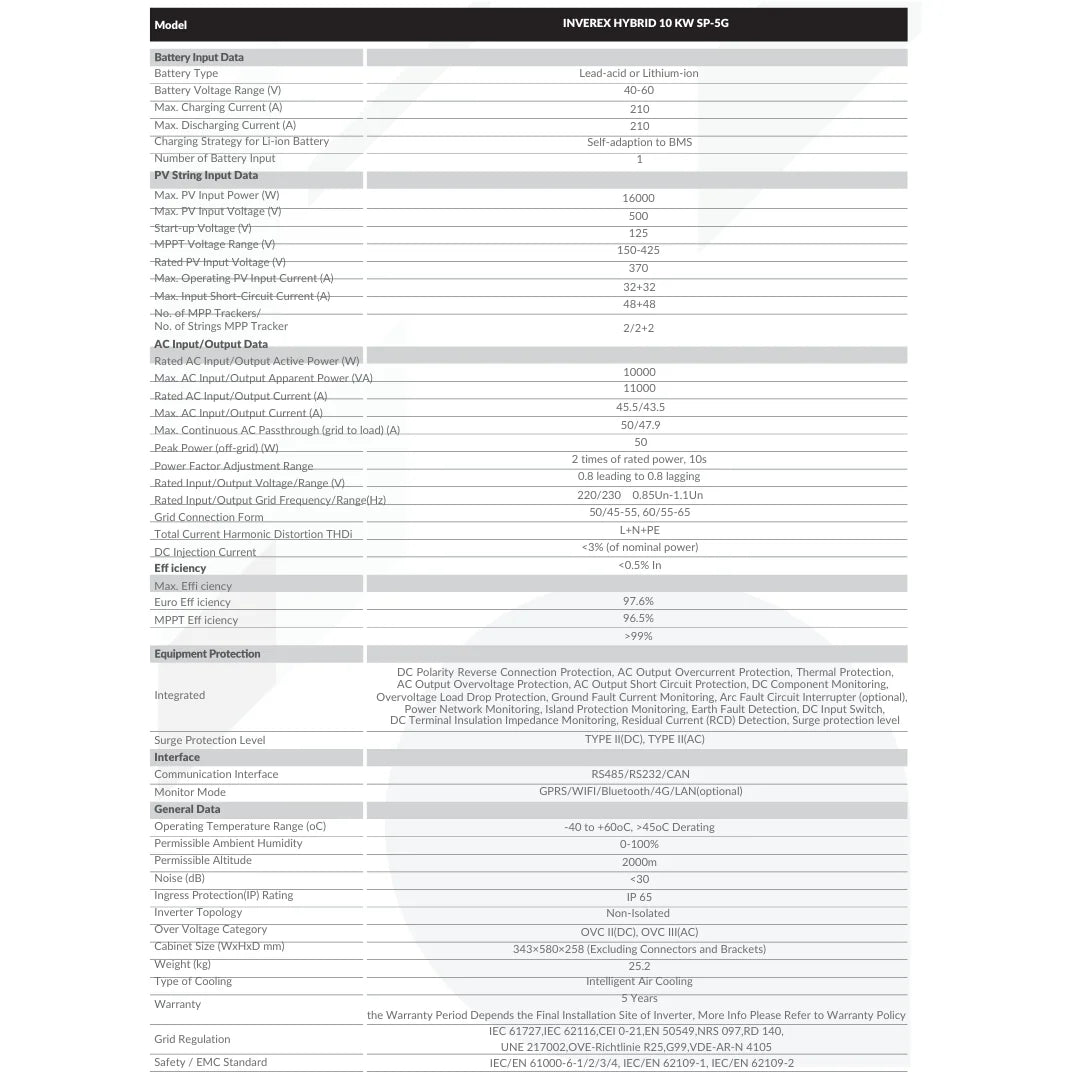

Inverex Nitrox 10KW SP-5G Specifications
| Specification |
Technical Data |
| Model |
NITROX HYBRID 10KW SP-5G |
| Rated AC Output |
10,000 W (10 kW) |
| Max Apparent AC Power |
11,000 VA |
| Max. PV Input Capacity |
16,000 W (16 kW) |
| MPPT Trackers / Strings |
2 MPPT / 2+2 Strings |
| MPPT Voltage Range |
150 V – 425 V DC |
| Battery Voltage Range |
40 V – 60 V (48V Nominal) |
| Max Charge / Discharge Current |
210 A |
| Battery Type |
Lithium-ion or Lead-Acid |
| Max. Inverter Efficiency |
97.6% (MPPT >99%) |
| Ingress Protection (IP) |
IP65 Outdoor Rating |
| Noise Level |
< 30 dB (Whisper Silent) |
| Dimensions & Weight |
343 × 580 × 258 mm |
| Warranty |
5 Years (Site dependent) |
