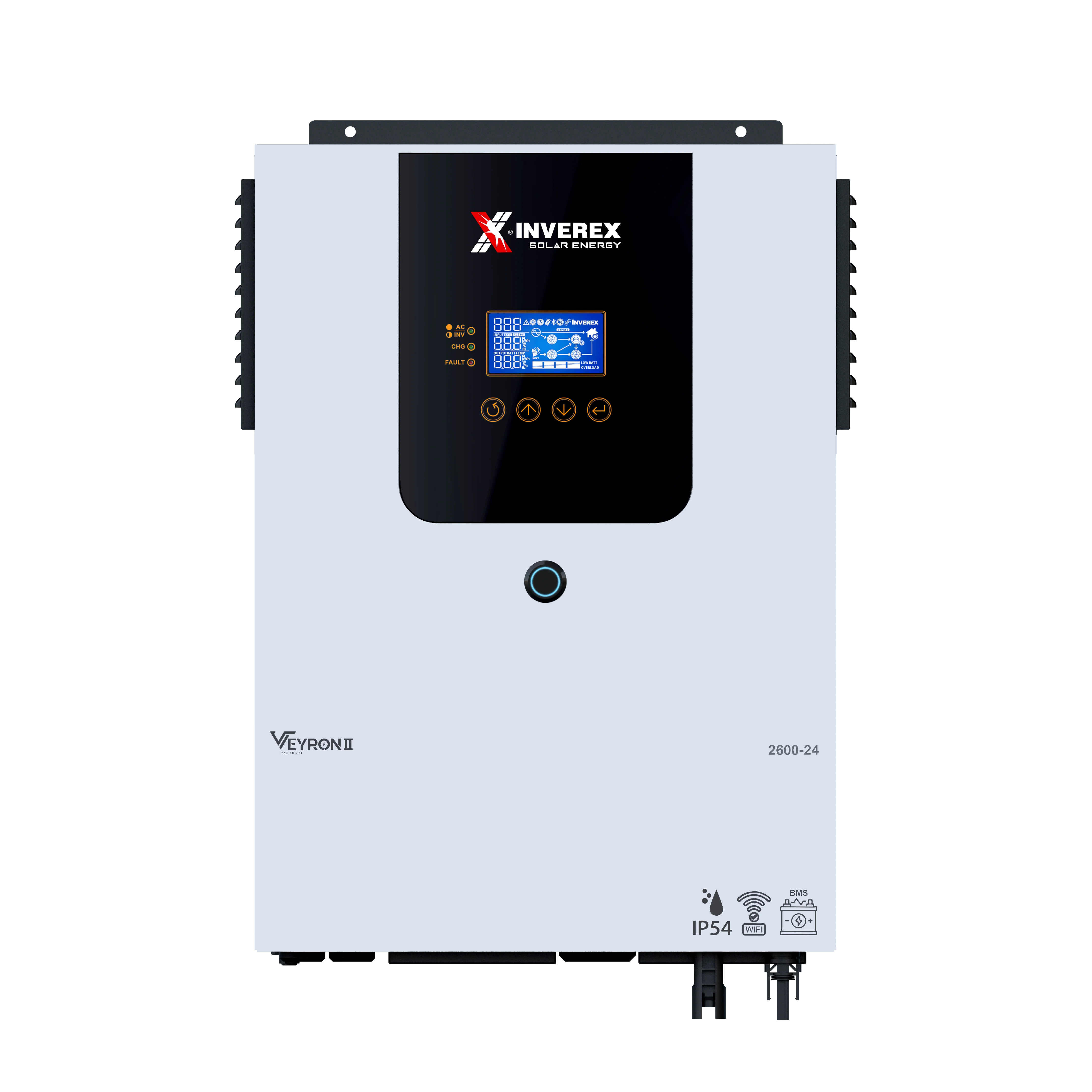

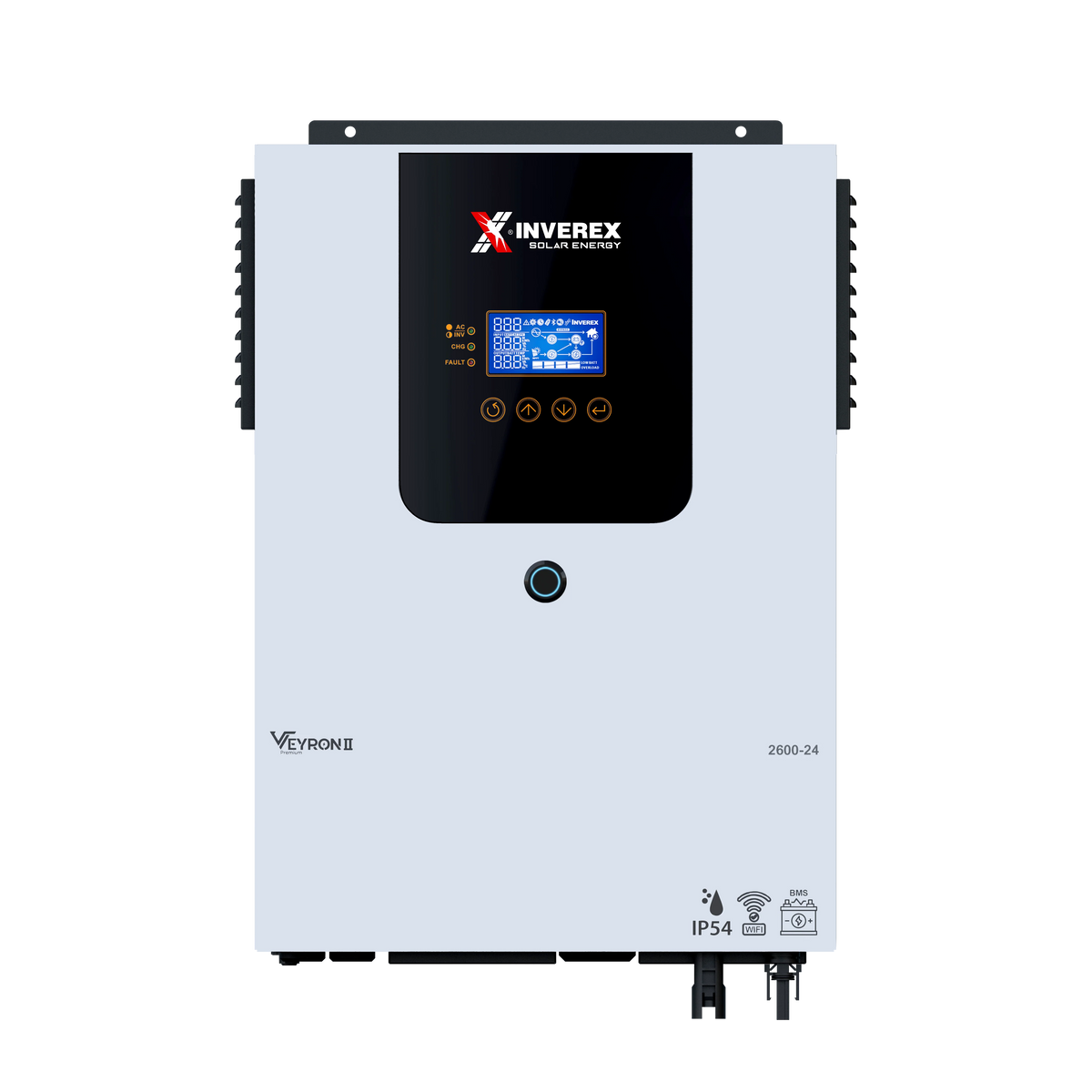

Inverex Veyron II Premium 2600-24 IP54 Solar Inverter
Engineered for rugged durability and smart energy management, the Inverex Veyron II Premium 2600-24 delivers reliable, all-weather power for residential and small commercial setups. Featuring an IP54-rated dust and water-resistant enclosure, this 24V hybrid inverter is built to withstand harsh outdoor and indoor environments alike.
Key Features
-
IP54 Weatherproof Rating: Dust- and water-resistant enclosure engineered to withstand challenging indoor and outdoor environments.
-
Battery-Free Operation: Operates directly using solar power without requiring an attached battery bank.
-
High-Efficiency Smart MPPT: Features maximum power point tracking delivering up to 93% peak efficiency.
-
Wide PV Input Voltage Range: Supports 30 VDC to 400 VDC with a low-voltage startup threshold of 30 VDC.
-
High Charging Capacity: Supports up to 100A solar charge current and 80A AC charge current for rapid battery replenishment.
-
Built-in Wi-Fi & Smart Control: Enables real-time remote monitoring and performance management through a mobile app.
-
Enhanced Battery Management: Integrated battery equalization function prolongs battery lifespan and optimizes storage performance.
-
BMS & Multi-Protocol Communication: Compatible with lithium BMS setups via RS232, RS485, CAN, and Wi-Fi.
-
Pure Sine Wave & Fast Switching: Delivers clean AC power with a 10 ms (PC) / 20 ms (Appliances) transfer switchover time.

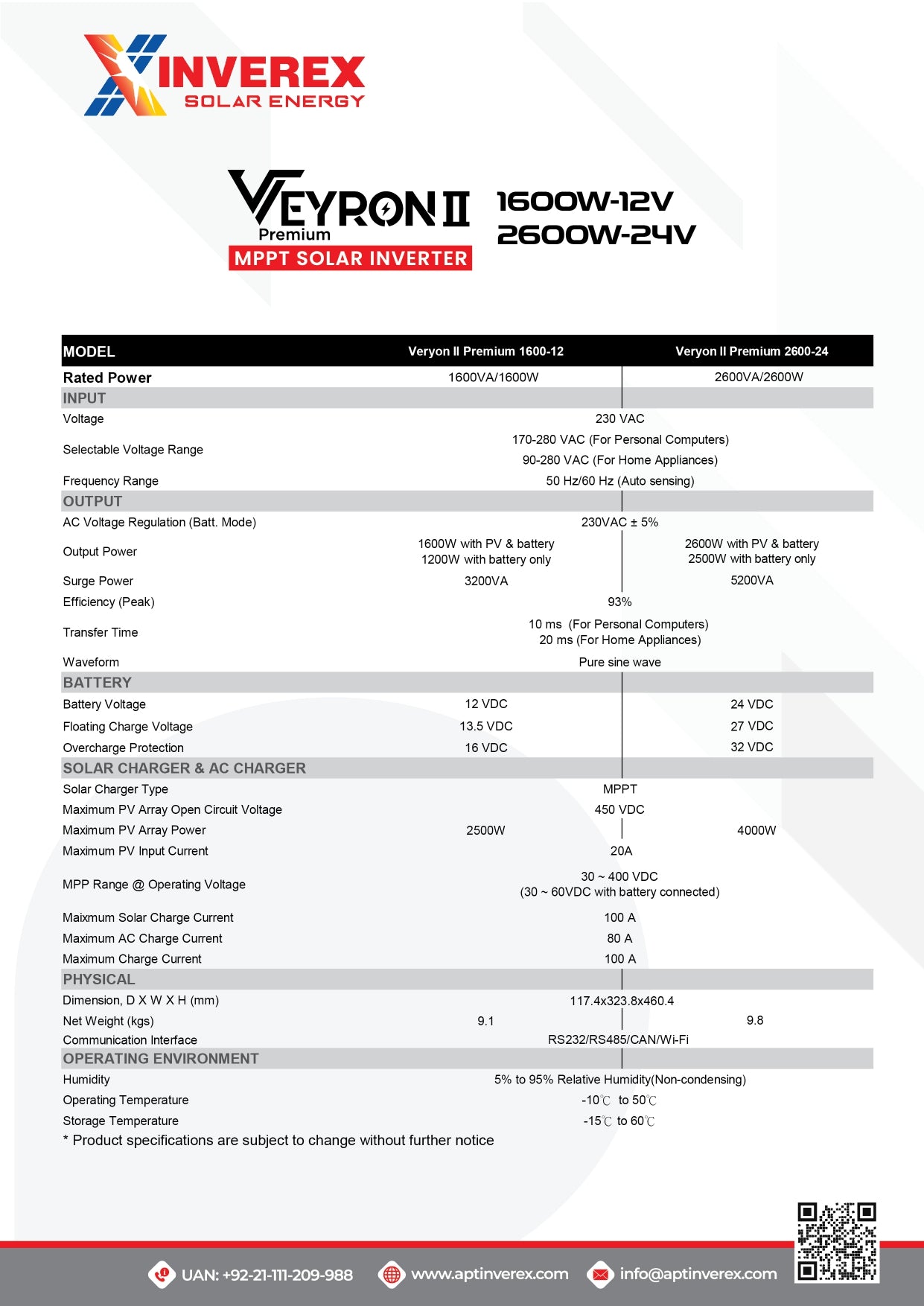

Technical Specifications
| Specification Category |
Parameter |
Rating / Value |
| General |
Model |
Veyron II Premium 2600-24 |
|
Rated Output Power |
2600VA / 2600W (with PV & battery) |
|
Battery-Only Output Power |
2500W |
|
Surge Capacity |
5200VA |
| Input (AC) |
Nominal AC Voltage |
230 VAC |
|
Selectable Voltage Range |
170–280 VAC (Computers) / 90–280 VAC (Home Appliances) |
|
Frequency Range |
50 Hz / 60 Hz (Auto Sensing) |
| Output (AC) |
Voltage Regulation (Batt. Mode) |
230 VAC ± 5% |
|
Waveform |
Pure Sine Wave |
|
Peak Efficiency |
93% |
|
Transfer Time |
10 ms (Computers) / 20 ms (Appliances) |
| Battery |
Nominal System Voltage |
24 VDC |
|
Floating Charge Voltage |
27 VDC |
|
Overcharge Protection |
32 VDC |
| Solar & AC Charger |
Solar Charger Type |
MPPT |
|
Max PV Array Power |
4000W |
|
Max PV Array Open Circuit Voltage (Voc) |
450 VDC |
|
MPPT Operating Voltage Range |
30 VDC – 400 VDC |
|
Max MPPT Input Current |
20A |
|
Max Solar Charge Current |
100A |
|
Max AC Charge Current |
80A |
| Physical & Environmental |
Dimensions (D x W x H) |
117.4 x 323.8 x 460.4 mm |
|
Net Weight |
9.8 kg |
|
Enclosure Rating |
IP54 (Dust & Water-Resistant) |
|
Communication Ports |
Wi-Fi, RS232, RS485, CAN, BMS |
|
Operating Temperature |
-10°C to 50°C |
| Warranty |
|
-
5-Year Warranty: Industry-leading 2 years product + 3 years service warranty.
|
