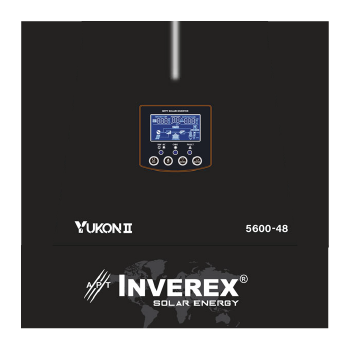

Inverex Yukon 3.5KW & 5.6KW MPPT Hybrid Solar Inverters – Smart Energy Management
The Inverex Yukon Series sets a new standard for home and light-commercial energy independence. Powered by a high-efficiency Pure Sine Wave inverter (PF=1.0) and integrated 80A MPPT solar charge controller, this hybrid system manages solar generation, grid power, generator input, and battery storage automatically to deliver uninterrupted power.
Key Highlights & Technical Features
-
High-Efficiency Pure Sine Wave Output (PF=1.0): Delivers 100% full continuous power rating (3,500W or 5,600W) while protecting sensitive home appliances, computers, and HVAC equipment from power surges.
-
Wide Solar Input Voltage (120Vdc – 500Vdc): Broad PV input voltage support allows higher-voltage solar array configurations with maximum MPPT tracking efficiency.
-
Operates With or Without a Battery: Run direct solar power during daytime hours without requiring immediate battery installation—ideal for budget-conscious setups.
-
Intelligent 3-Stage 80A Battery Charger: Optimizes battery longevity with automatically managed 3-stage AC charging algorithms for high efficiency.
-
Smart Priority Control: Select custom power source priorities (Solar, Battery, or Utility Grid) depending on peak electricity tariff times and outages.
-
Built-In Anti-Dust Protection: Includes an integrated anti-dust kit to filter air flow, keeping internal cooling circuits free of dust buildup for longer operational life.
-
Generator & Grid Adaptability: Compatible with main grid lines and backup diesel/petrol generators for non-stop uptime.
-
USB & RS232 Communication Ports: Easy local diagnostic, data logging, and performance monitoring.

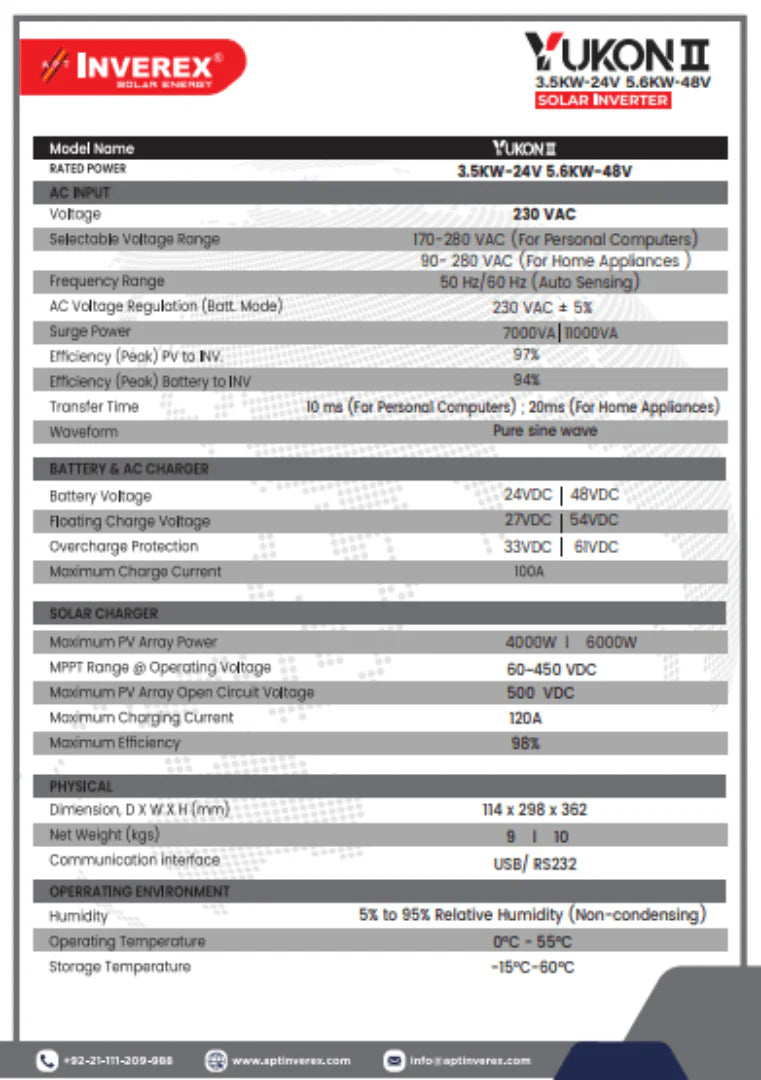

Inverex Yukon Series Specifications Summary
| Specification |
Inverex Yukon 3.5KW |
Inverex Yukon 5.6KW |
| Rated Output Power |
3,500 W (3.5 kW) |
5,600 W (5.6 kW) |
| Output Waveform |
Pure Sine Wave (Power Factor = 1.0) |
Pure Sine Wave (Power Factor = 1.0) |
| Solar Charger Type |
MPPT |
MPPT |
| Max MPPT Solar Charging |
80 A |
80 A |
| Max AC Battery Charging |
80 A (3-Stage Intelligent) |
80 A (3-Stage Intelligent) |
| PV Input Voltage Range |
120 Vdc – 500 Vdc |
120 Vdc – 500 Vdc |
| Battery-Free Operation |
Supported |
Supported |
| Protection Kit |
Built-in Anti-Dust Filter |
Built-in Anti-Dust Filter |
| Communication Ports |
USB / RS232 |
USB / RS232 |
| Mounting Type |
Wall-Mounted |
Wall-Mounted |
