TE – A05 LOW VOLTAGE BATTERY
TE – A05 LOW VOLTAGE BATTERY

TE – A05 LOW VOLTAGE BATTERY

TE-A05 Low Voltage LiFePO4 Battery (5.12kWh) The TE-A05 is a high-performance, wall-mounted low-voltage lithium battery designed to...
Vendor: TRIEX
Availability: Out Of Stock
Product Type: LITHIUM ION BATTERIES
Rs.245,000.00
Rs.265,000.00
Rs.245,000.00
(-8%)
Please hurry! Only 0 left in stock
Subtotal: Rs.245,000.00
10 customers are viewing this product

Free Shipping on Online Payment

Pay online via Bank Transfer, JazzCash, Easypaisa enjoy FREE shipping anywhere in Pakistan. Fast, secure, and hassle-free delivery.

Enjoy fast delivery, arriving within 2-4 business days.

5 Years Manufacturer Warranty

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy Parcel Logistics Notice

Heavy items are shipped via cargo. Cargo charges will be paid by the customer upon delivery.
TE – A05 LOW VOLTAGE BATTERY

TE – A05 LOW VOLTAGE BATTERY

Rs.265,000.00 Rs.245,000.00
TE – A05 LOW VOLTAGE BATTERY
TE – A05 LOW VOLTAGE BATTERY

TE – A05 LOW VOLTAGE BATTERY

Rs.265,000.00 Rs.245,000.00
Description

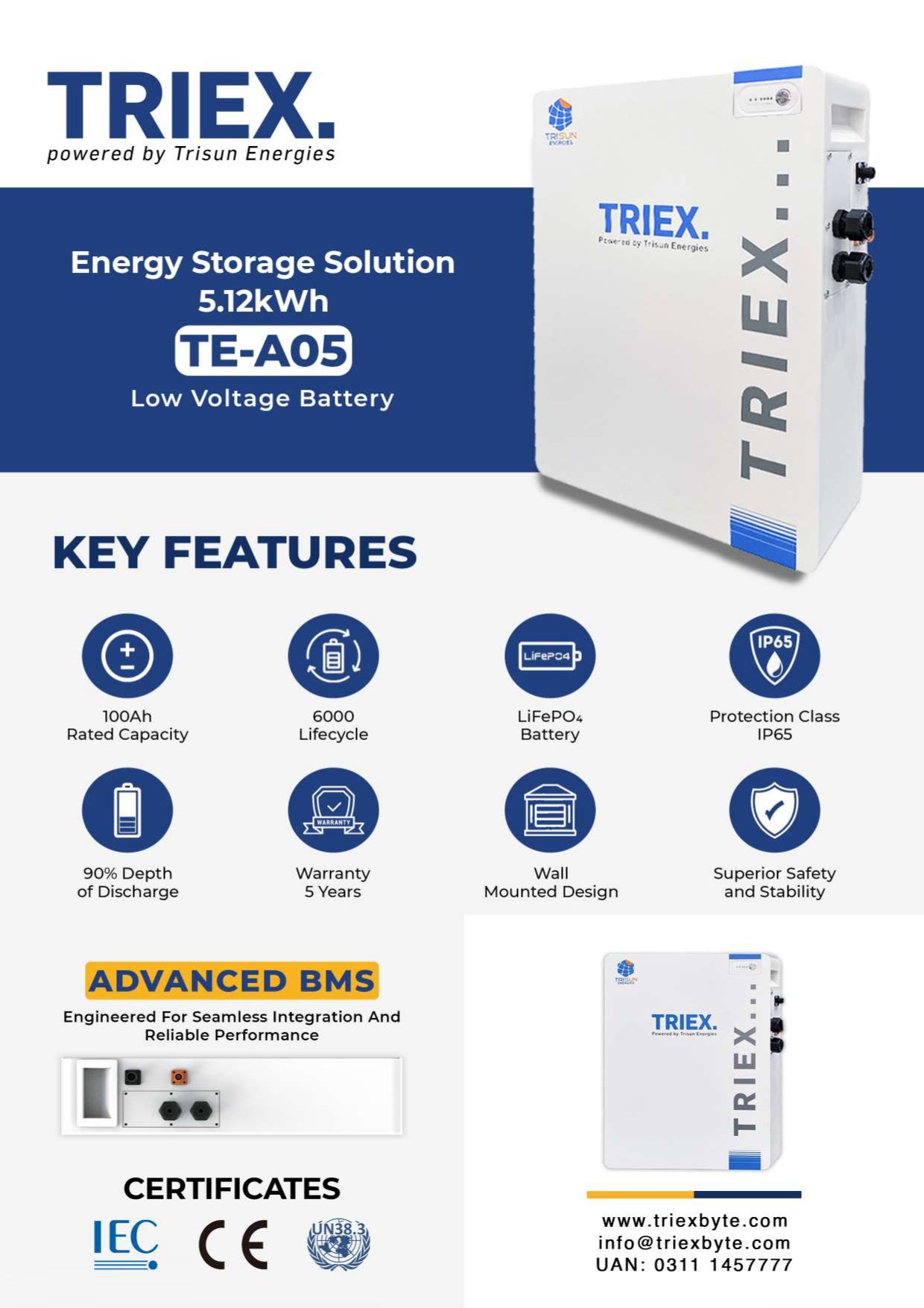

TE-A05 Low Voltage LiFePO4 Battery (5.12kWh)

The TE-A05 is a high-performance, wall-mounted low-voltage lithium battery designed to deliver reliable energy storage for home and business solar setups. Featuring premium Lithium Iron Phosphate (LiFePO4) chemistry and a 5.12kWh capacity, it provides a long cycle life, exceptionally fast response times, and maximum efficiency.

Key Highlights

  • Safe & Durable LiFePO4 Tech: Built with a 16S1P LFP cell configuration delivering over 6,000 cycles at 25°C.

  • High Usable Energy: Provides 4.6kWh of usable capacity with a recommended 90% Depth of Discharge (DOD).

  • IP65 Weatherproof Rating: Rugged housing designed for both indoor and outdoor installations.

  • Wall-Mounted Design: Compact footprint (454 × 585 × 135 mm) saves valuable floor space.

  • High Output Capabilities: Delivers up to 100A continuous charging/discharging current and up to 5.12kW peak power output.

  • Universal Inverter Compatibility: Multi-protocol communication support via CAN, RS485, and RS232.

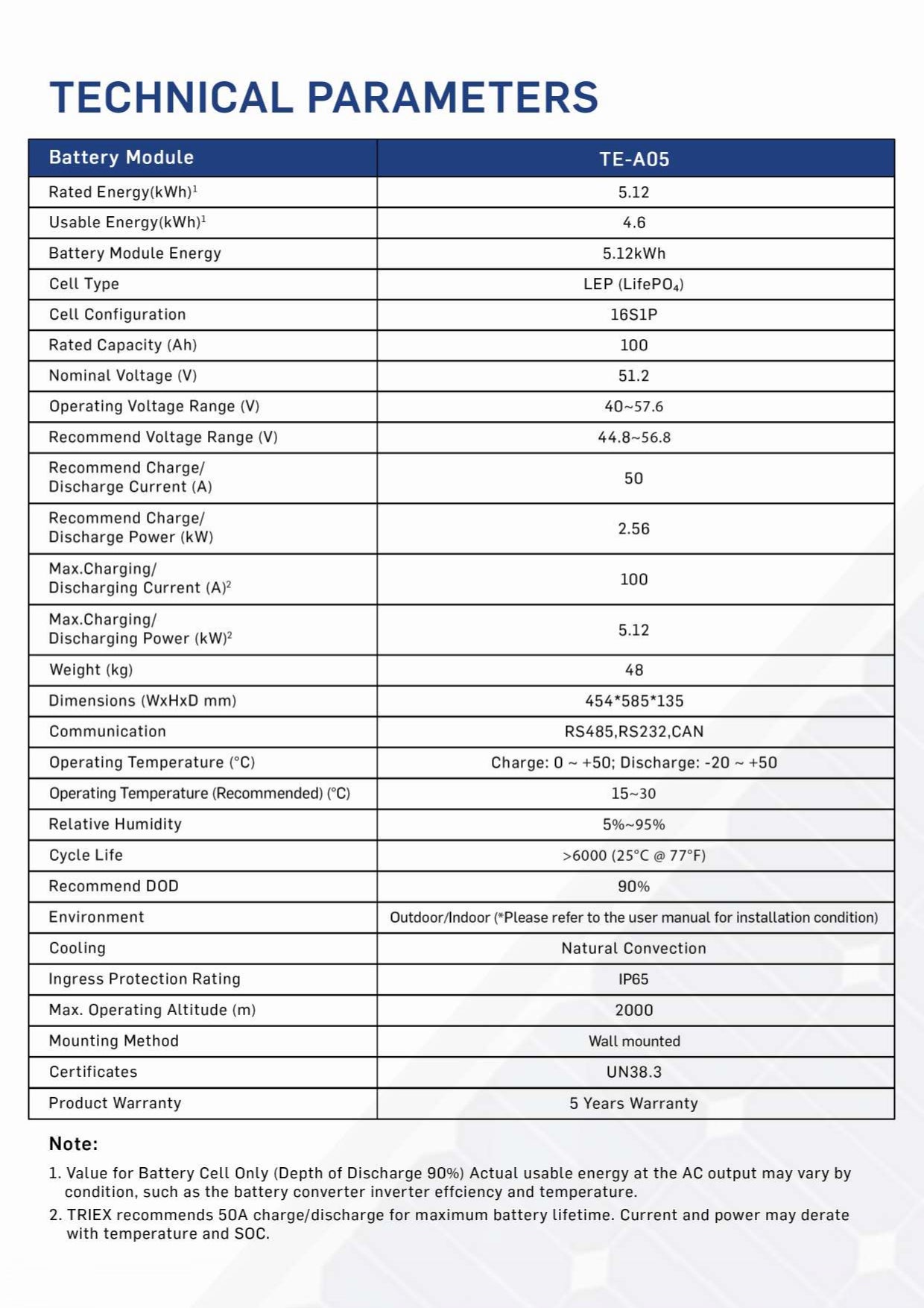

Technical Specifications

Parameter Specification
Model TE-A05
Cell Type / Configuration LiFePO4 (LFP) / 16S1P
Rated Energy 5.12 kWh
Usable Energy 4.6 kWh
Nominal Capacity 100 Ah
Nominal Voltage 51.2 V
Operating Voltage Range 40.0 V ~ 57.6 V
Recommended Voltage Range 44.8 V ~ 56.8 V
Recommended Charge/Discharge Power 2.56 kW (50A)
Max. Charge/Discharge Power 5.12 kW (100A)
Cycle Life >6000 Cycles @ 25°C
Recommended DOD 90%
Ingress Protection Rating IP65 (Outdoor / Indoor)
Cooling Method Natural Convection
Communication Protocols RS485, RS232, CAN
Dimensions (W × H × D) 454 × 585 × 135 mm
Weight 48 kg
Mounting Wall-Mounted
Operating Temperature

Charge: 0°C to +50°C


Discharge: -20°C to +50°C
Recommended Temp Range 15°C to 30°C
Certifications & Warranty UN38.3 / 5 Years Warranty
