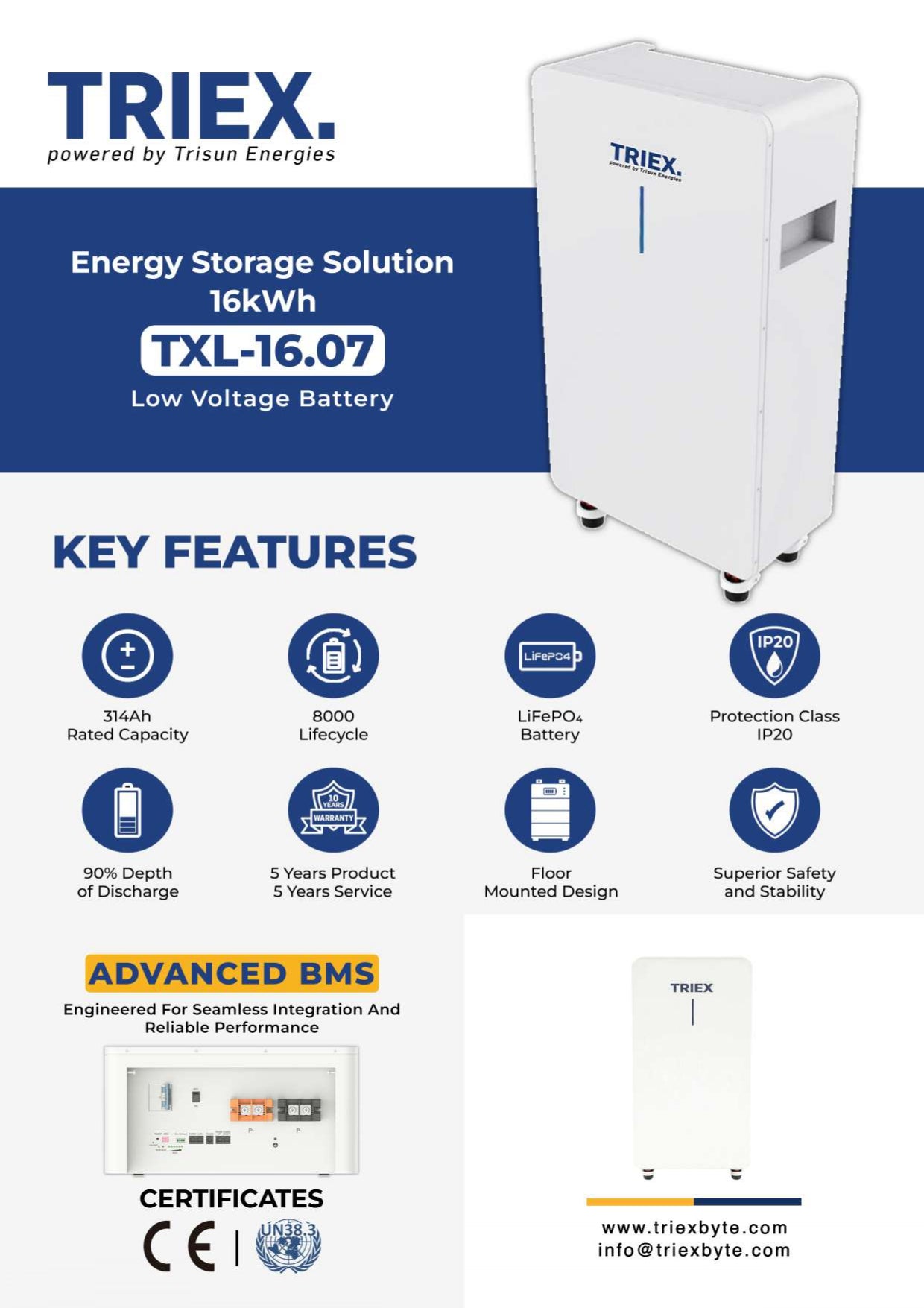

Triex 16.07kWh Low Voltage LiFePO4 Solar Battery (16kW / 314Ah)
The Triex 16.07kWh is a heavy-duty, high-capacity Lithium Iron Phosphate (LiFePO4) battery engineered for demanding residential and commercial energy storage applications. Delivering 16.07kWh of total rated energy (15.27kWh usable) and a 314Ah rated capacity, it provides exceptional power backup to seamlessly run heavy loads like air conditioners, pumps, and commercial equipment during grid outages.
Key Highlights
-
Massive Energy Storage: Packs 16.07kWh rated energy (15.27kWh usable) with 314Ah capacity into a single footprint.
-
8,000+ Life Cycles: Exceptional lifespan (rated at ≥8000 cycles @ 80% DOD, 0.5C/25°C), ensuring long-term performance.
-
High Efficiency & Usable Power: Supports 90% Depth of Discharge (DOD) for maximum daily solar utilization.
-
Heavy Output Capability: Delivers a continuous rated charge/discharge current of 157A and maximum current up to 200A.
-
Advanced BMS & Multi-Communication: Fully compatible with hybrid inverters via CAN, RS485, and RS232 communication ports.
-
Massive Parallel Expansion: Supports parallel connection of up to 16 units for massive system scalability.
-
Enhanced Safety Features: Includes IP20 protection, optional integrated aerosol firefighting, and CE/UN38.3 certifications.
-
Space-Saving Floor Design: Clean, floor-mounted footprint (500 × 250 × 920 mm) built for easy setup.

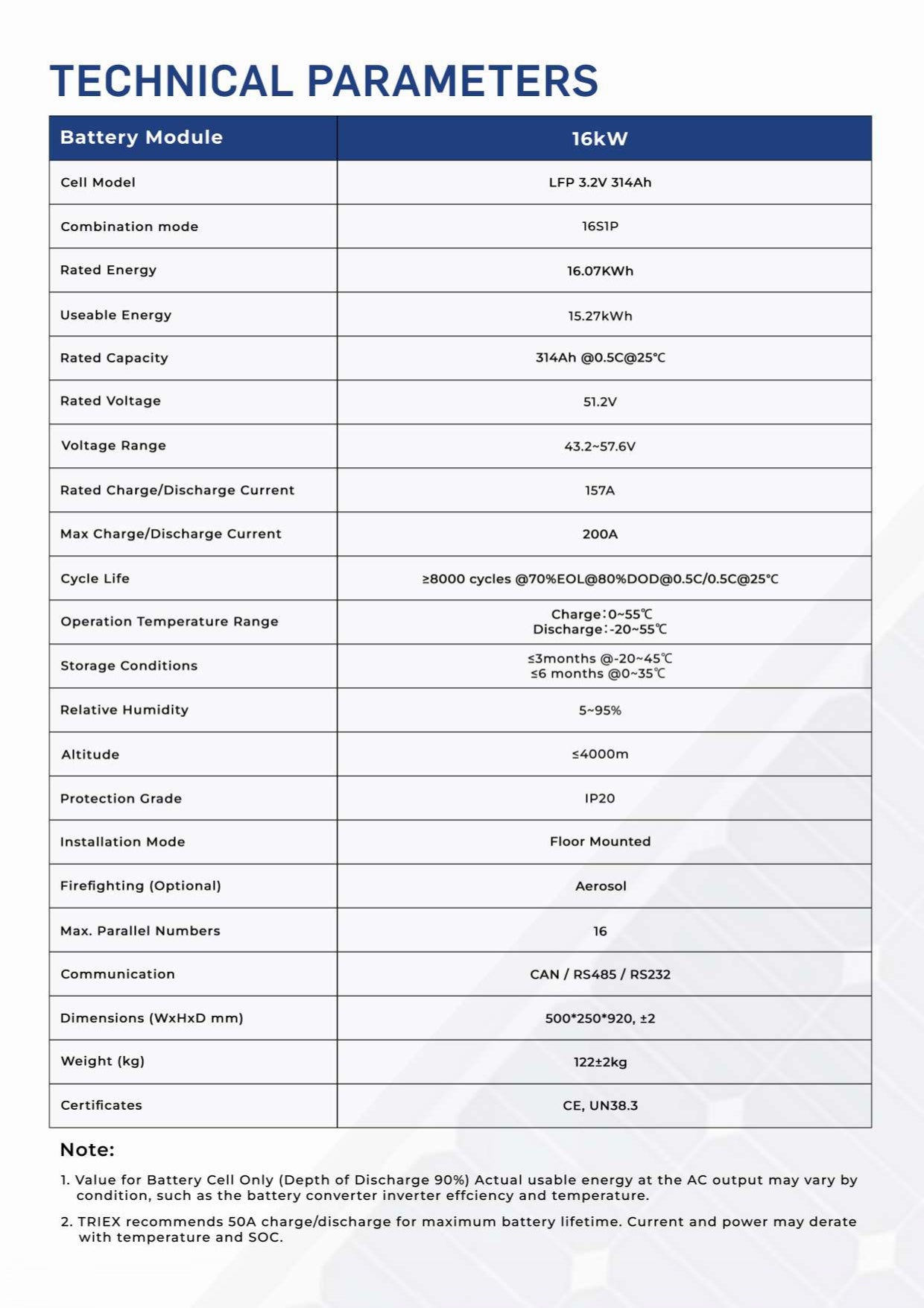

Technical Specifications
| Parameter |
Specification |
| Model Category |
Triex 16kW / 16.07kWh |
| Cell Model / Combination |
LFP 3.2V 314Ah / 16S1P |
| Rated Energy |
16.07 kWh |
| Usable Energy |
15.27 kWh |
| Rated Capacity |
314Ah (@0.5C, 25°C) |
| Rated Voltage |
51.2 VDC |
| Voltage Operating Range |
43.2 V ~ 57.6 V |
| Rated Charge/Discharge Current |
157A |
| Max Charge/Discharge Current |
200A |
| Cycle Life |
≥8,000 Cycles (@70% EOL, 80% DOD, 0.5C, 25°C) |
| Depth of Discharge (DOD) |
90% |
| Protection Grade |
IP20 |
| Installation Mode |
Floor Mounted |
| Max Parallel Units |
Up to 16 Units |
| Optional Safety System |
Aerosol Firefighting |
| Communication Protocols |
CAN / RS485 / RS232 |
| Operating Temperature |
Charge: 0°C to 55°C | Discharge: -20°C to 55°C |
| Dimensions (W × H × D) |
500 × 250 × 920 mm (±2 mm) |
| Weight |
122 kg (±2 kg) |
| Certifications |
CE, UN38.3 |
| Warranty |
5 Years Product + 5 Years Service |
